Ionic fraction data

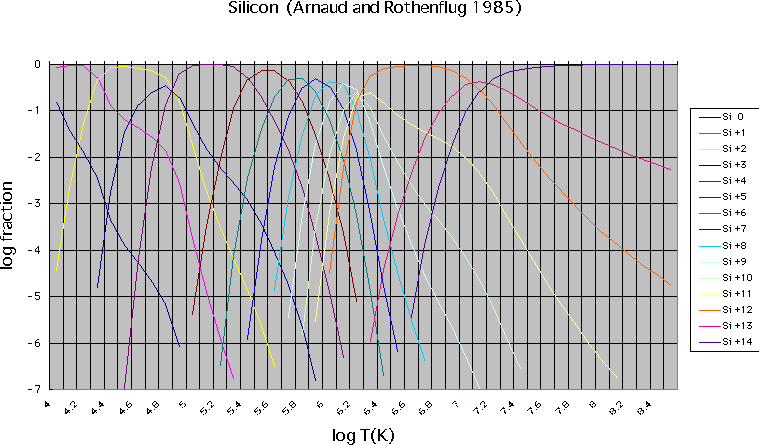

Arnaud and Rothenflug(1985) - Silicon
LOG T +0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +10
4.0 -0.81 -0.07 -4.44
4.1 -1.43 -0.02 -2.66
4.2 -1.90 -0.03 -1.29
4.3 -2.46 -0.29 -0.32 -4.81
4.4 -3.36 -0.88 -0.06 -2.76
4.5 -3.90 -1.19 -0.04 -1.47 -6.97
4.6 -4.28 -1.36 -0.09 -0.87 -4.17
4.7 -4.68 -1.56 -0.14 -0.60 -2.24
4.8 -5.18 -1.86 -0.29 -0.46 -0.89
4.9 -6.07 -2.57 -0.80 -0.70 -0.19
5.0 -3.74 -1.75 -1.27 -0.03 -5.38
5.1 -4.92 -2.73 -1.82 -0.01 -3.49
5.2 -5.93 -3.53 -2.25 -0.01 -2.04 -6.49
5.3 -6.77 -4.18 -2.56 -0.05 -0.95 -4.13
5.4 -4.86 -2.93 -0.28 -0.33 -2.46 -5.92
5.5 -5.65 -3.45 -0.71 -0.12 -1.39 -3.79
5.6 -6.50 -4.04 -1.23 -0.13 -0.70 -2.22 -4.86
5.7 -4.76 -1.85 -0.35 -0.33 -1.12 -2.87 -5.45
5.8 -5.67 -2.66 -0.81 -0.31 -0.49 -1.50 -3.24 -5.82
5.9 -6.81 -3.68 -1.52 -0.61 -0.30 -0.69 -1.73 -3.52
6.0 -4.90 -2.47 -1.21 -0.47 -0.36 -0.82 -1.95
6.1 -6.31 -3.63 -2.06 -0.97 -0.44 -0.41 -0.98
6.2 -5.10 -3.26 -1.86 -0.98 -0.53 -0.62
6.3 -4.92 -3.25 -2.06 -1.27 -0.94
6.4 -6.70 -4.79 -3.33 -2.22 -1.54
6.5 -6.19 -4.49 -3.11 -2.12
6.6 -5.51 -3.88 -2.61
6.7 -6.38 -4.54 -3.01
6.8 -5.12 -3.37
6.9 -5.69 -3.74
7.0 -6.30 -4.15
7.1 -6.98 -4.66
7.2 -5.26
7.3 -5.90
7.4 -6.54
7.5
7.6
7.7
7.8
7.9
8.0
8.1
8.2
8.3
8.4
8.5
LOG T +11 +12 +13 +14
4.0
4.1
4.2
4.3
4.4
4.5
4.6
4.7
4.8
4.9
5.0
5.1
5.2
5.3
5.4
5.5
5.6
5.7
5.8
5.9 -5.54
6.0 -3.20 -4.51
6.1 -1.60 -2.25
6.2 -0.71 -0.82
6.3 -0.60 -0.24 -5.97
6.4 -0.82 -0.09 -4.44
6.5 -1.08 -0.04 -3.27
6.6 -1.29 -0.03 -2.34 -5.44
6.7 -1.45 -0.03 -1.61 -3.90
6.8 -1.59 -0.05 -1.05 -2.68
6.9 -1.76 -0.13 -0.66 -1.73
7.0 -2.00 -0.28 -0.42 -1.03
7.1 -2.34 -0.54 -0.36 -0.58
7.2 -2.78 -0.88 -0.42 -0.31
7.3 -3.27 -1.28 -0.57 -0.17
7.4 -3.78 -1.67 -0.74 -0.10
7.5 -4.27 -2.06 -0.93 -0.06
7.6 -4.74 -2.41 -1.10 -0.04
7.7 -5.19 -2.74 -1.26 -0.03
7.8 -5.61 -3.05 -1.41 -0.02
7.9 -6.01 -3.34 -1.55 -0.01
8.0 -6.39 -3.61 -1.69 -0.01
8.1 -6.75 -3.86 -1.81 -0.01
8.2 -4.09 -1.93 -0.01
8.3 -4.32 -2.05 0.00
8.4 -4.53 -2.16 0.00
8.5 -4.73 -2.26 0.00
