Ionic fraction data

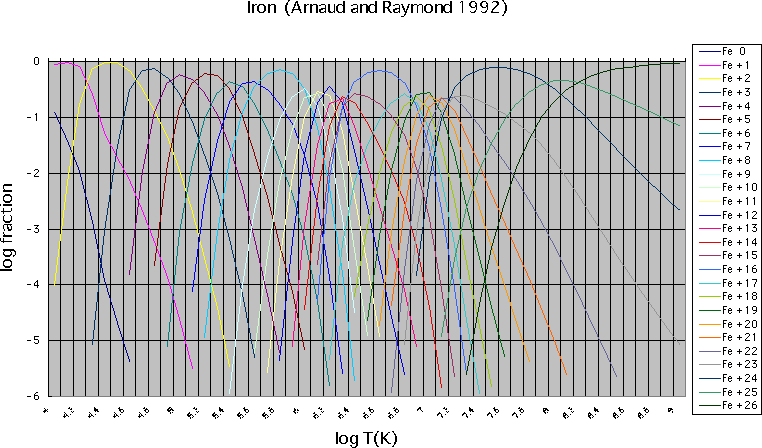

Arnaud and Raymond(1992) - Iron
Log T(K) +0 +1 +2 +3 +4 +5 +6 +7 +8
4.0 -0.91 -0.06 -4.01
4.1 -1.44 -0.02 -2.16
4.2 -1.97 -0.09 -0.77
4.3 -2.88 -0.59 -0.13 -5.07
4.4 -3.93 -1.29 -0.02 -3.05
4.5 -4.70 -1.74 -0.02 -1.52
4.6 -5.38 -2.14 -0.16 -0.52 -3.81
4.7 -2.68 -0.50 -0.17 -1.97
4.8 -3.24 -0.89 -0.13 -0.91 -3.65
4.9 -3.87 -1.36 -0.28 -0.38 -1.85 -5.11
5.0 -4.62 -1.96 -0.60 -0.23 -0.84 -3.06
5.1 -5.49 -2.70 -1.09 -0.32 -0.38 -1.82 -4.12
5.2 -3.53 -1.69 -0.57 -0.21 -1.03 -2.49 -4.95
5.3 -4.43 -2.37 -0.96 -0.25 -0.55 -1.43 -3.07
5.4 -5.46 -3.19 -1.52 -0.50 -0.35 -0.73 -1.77
5.5 -4.18 -2.27 -0.98 -0.44 -0.40 -0.92
5.6 -5.31 -3.18 -1.66 -0.77 -0.36 -0.44
5.7 -4.19 -2.44 -1.24 -0.51 -0.21
5.8 -5.21 -3.27 -1.78 -0.77 -0.15
5.9 -4.13 -2.39 -1.12 -0.22
6.0 -5.15 -3.17 -1.68 -0.51
6.1 -4.29 -2.56 -1.19
6.2 -5.80 -3.87 -2.27
6.3 -5.59 -3.79
6.4 -5.72
6.5
log(T) +9 +10 +11 +12 +13 +14 +15 +16 +17
5.0
5.1
5.2
5.3
5.4 -5.94
5.5 -4.02
5.6 -2.66 -5.21
5.7 -1.72 -3.48 -5.57
5.8 -1.05 -2.17 -3.59 -5.35
5.9 -0.62 -1.21 -2.06 -3.22 -5.10
6.0 -0.49 -0.64 -1.01 -1.66 -2.93 -4.44
6.1 -0.81 -0.57 -0.53 -0.75 -1.50 -2.42 -3.63 -4.28
6.2 -1.58 -1.01 -0.61 -0.45 -0.75 -1.16 -1.82 -2.10 -5.34
6.3 -2.81 -1.96 -1.25 -0.75 -0.66 -0.62 -0.83 -0.83 -3.28
6.4 -4.50 -3.39 -2.41 -1.61 -1.17 -0.74 -0.57 -0.35 -2.17
6.5 -4.91 -3.68 -2.62 -1.88 -1.11 -0.62 -0.20 -1.51
6.6 -4.92 -3.61 -2.59 -1.52 -0.76 -0.16 -1.05
6.7 -4.58 -3.31 -1.97 -0.98 -0.20 -0.73
6.8 -5.60 -4.10 -2.52 -1.32 -0.37 -0.58
6.9 -5.10 -3.31 -1.91 -0.80 -0.73
7.0 -4.41 -2.83 -1.56 -1.24
7.1 -5.84 -4.09 -2.66 -2.11
7.2 -5.65 -4.07 -3.30
7.3 -5.60 -4.63
7.4 -5.95
7.5
log (T) +18 +19 +20 +21 +22 +23 +24 +25 +26
6.0
6.1
6.2
6.3
6.4 -4.20
6.5 -2.95 -4.63
6.6 -2.00 -3.13 -4.73
6.7 -1.28 -1.95 -3.07 -4.37 -5.92
6.8 -0.79 -1.08 -1.79 -2.67 -3.74 -5.06
6.9 -0.63 -0.59 -0.96 -1.46 -2.13 -3.05 -3.84
7.0 -0.88 -0.56 -0.61 -0.80 -1.13 -1.69 -2.10
7.1 -1.52 -0.94 -0.73 -0.64 -0.67 -0.92 -1.02 -4.92
7.2 -2.49 -1.67 -1.22 -0.88 -0.65 -0.63 -0.49 -3.54
7.3 -3.62 -2.59 -1.91 -1.35 -0.87 -0.61 -0.25 -2.62 -5.60
7.4 -4.74 -3.52 -2.64 -1.86 -1.17 -0.69 -0.15 -1.96 -4.35
7.5 -5.82 -4.41 -3.34 -2.38 -1.49 -0.80 -0.11 -1.46 -3.35
7.6 -5.28 -4.02 -2.88 -1.81 -0.93 -0.11 -1.06 -2.55
7.7 -4.70 -3.38 -2.14 -1.09 -0.14 -0.76 -1.90
7.8 -5.37 -3.90 -2.50 -1.28 -0.21 -0.54 -1.39
7.9 -4.44 -2.88 -1.51 -0.32 -0.41 -1.01
8.0 -5.01 -3.31 -1.79 -0.48 -0.34 -0.71
8.1 -5.60 -3.76 -2.10 -0.67 -0.34 -0.50
8.2 -4.23 -2.44 -0.88 -0.38 -0.35
8.3 -4.70 -2.78 -1.11 -0.44 -0.25
8.4 -5.17 -3.13 -1.35 -0.53 -0.18
8.5 -5.64 -3.47 -1.58 -0.63 -0.13
8.6 -3.81 -1.81 -0.73 -0.10
8.7 -4.14 -2.03 -0.83 -0.07
8.8 -4.46 -2.24 -0.94 -0.06
8.9 -4.77 -2.45 -1.04 -0.04
9.0 -5.07 -2.65 -1.14 -0.03
