Ionic fraction data

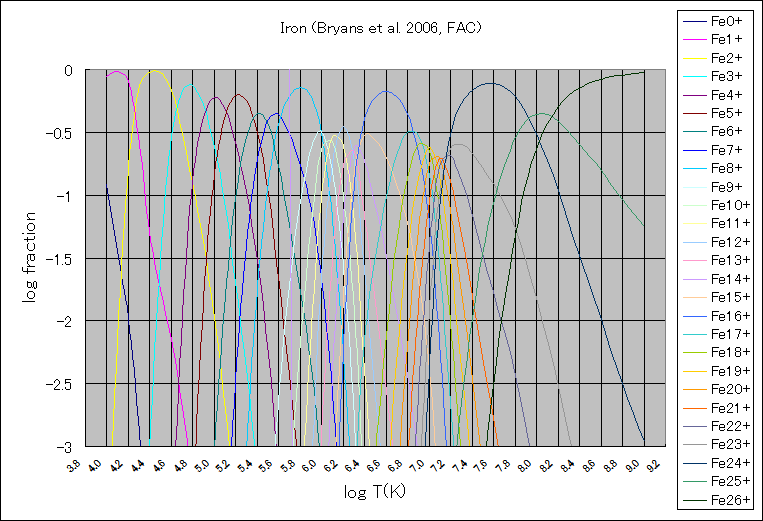

Bryans et al.(2006) - Iron(FAC-BASED RESULTS)
log(T) Fe0+ Fe1+ Fe2+ Fe3+ Fe4+ Fe5+ Fe6+ Fe7+ Fe8+ Fe9+ Fe10+ Fe11+ Fe12+ Fe13+
4.0 -0.916 -0.056 -4.006
4.1 -1.45 -0.019 -2.165
4.2 -1.981 -0.085 -0.776 -8.101
4.3 -2.883 -0.589 -0.13 -5.069
4.4 -3.933 -1.291 -0.023 -3.046 -10.64
4.5 -4.698 -1.747 -0.021 -1.52 -6.727
4.6 -5.371 -2.145 -0.158 -0.527 -3.813 -10.373
4.7 -6.163 -2.688 -0.507 -0.17 -1.969 -6.405 -13.158
4.8 -6.947 -3.245 -0.897 -0.127 -0.898 -3.638 -8.368
4.9 -7.784 -3.872 -1.369 -0.279 -0.38 -1.843 -5.095 -10.166
5.0 -8.732 -4.623 -1.972 -0.61 -0.224 -0.835 -3.049 -6.479 -11.453
5.1 -9.801 -5.504 -2.709 -1.101 -0.322 -0.37 -1.808 -4.08 -7.575
5.2 -10.947 -6.47 -3.532 -1.695 -0.581 -0.208 -1.023 -2.491 -4.934 -12.007
5.3 -12.164 -7.514 -4.43 -2.376 -0.969 -0.25 -0.544 -1.405 -3.056 -8.535 -14.671
5.4 -13.504 -8.685 -5.453 -3.19 -1.522 -0.503 -0.35 -0.72 -1.741 -5.916 -10.608
5.5 -10.023 -6.64 -4.174 -2.268 -0.984 -0.441 -0.395 -0.901 -4.005 -7.517 -11.373
5.6 -11.506 -7.968 -5.304 -3.179 -1.655 -0.766 -0.361 -0.434 -2.658 -5.206 -8.1 -11.438
5.7 -13.06 -9.365 -6.506 -4.176 -2.431 -1.232 -0.51 -0.215 -1.715 -3.476 -5.569 -8.043 -11.515
5.8 -14.627 -10.774 -7.723 -5.199 -3.248 -1.767 -0.762 -0.147 -1.049 -2.166 -3.587 -5.346 -7.95
5.9 -12.211 -8.97 -6.26 -4.116 -2.377 -1.113 -0.216 -0.62 -1.208 -2.061 -3.221 -5.102
6.0 -13.783 -10.357 -7.468 -5.14 -3.164 -1.662 -0.512 -0.495 -0.64 -1.01 -1.664 -2.936
6.1 -12.049 -8.988 -6.482 -4.288 -2.565 -1.183 -0.805 -0.574 -0.531 -0.751 -1.502
6.2 -14.088 -10.86 -8.183 -5.787 -3.856 -2.26 -1.566 -1.007 -0.608 -0.45 -0.752
6.3 -13.119 -10.277 -7.694 -5.565 -3.769 -2.794 -1.945 -1.236 -0.744 -0.652
6.4 -12.763 -10.006 -7.689 -5.704 -4.475 -3.364 -2.384 -1.593 -1.153
6.5 -12.357 -9.86 -7.696 -6.235 -4.885 -3.661 -2.601 -1.852
6.6 -14.582 -11.913 -9.577 -7.901 -6.332 -4.887 -3.584 -2.557
6.7 -13.857 -11.357 -9.482 -7.709 -6.062 -4.535 -3.26
6.8 -13.096 -11.033 -9.07 -7.235 -5.503 -4.003
6.9 -14.883 -12.644 -10.502 -8.492 -6.57 -4.864
7.0 -14.427 -12.116 -9.942 -7.843 -5.948
7.1 -14.035 -11.706 -9.442 -7.372
7.2 -13.806 -11.386 -9.153
7.3 -13.468 -11.079
7.4 -12.975
7.5 -14.785
7.6
7.7
7.8
7.9
8.0
8.1
8.2
8.3
8.4
8.5
8.6
8.7
8.8
8.9
9.0
log(T) Fe14+ Fe15+ Fe16+ Fe17+ Fe18+ Fe19+ Fe20+ Fe21+ Fe22+ Fe23+ Fe24+ Fe25+ Fe26+
4.0
4.1
4.2
4.3
4.4
4.5
4.6
4.7
4.8
4.9
5.0
5.1
5.2
5.3
5.4
5.5
5.6
5.7
5.8 -10.923 -14.448
5.9 -7.281 -9.903 -11.983
6.0 -4.439 -6.294 -7.648 -13.279
6.1 -2.421 -3.621 -4.431 -8.719 -13.687
6.2 -1.162 -1.807 -2.216 -5.456 -9.254 -13.654
6.3 -0.617 -0.797 -0.905 -3.329 -6.206 -9.572 -13.407
6.4 -0.728 -0.524 -0.391 -2.171 -4.324 -6.872 -9.803 -13.151
6.5 -1.084 -0.565 -0.226 -1.487 -3.062 -4.96 -7.171 -9.73 -12.556
6.6 -1.488 -0.704 -0.179 -1.012 -2.114 -3.488 -5.119 -7.042 -9.171 -11.553 -14.004
6.7 -1.923 -0.913 -0.214 -0.681 -1.388 -2.329 -3.486 -4.891 -6.45 -8.229 -10.035
6.8 -2.428 -1.217 -0.353 -0.503 -0.871 -1.445 -2.205 -3.179 -4.268 -5.551 -6.822 -14.605
6.9 -3.075 -1.682 -0.657 -0.527 -0.598 -0.856 -1.276 -1.884 -2.578 -3.445 -4.271 -10.485
7.0 -3.964 -2.402 -1.222 -0.84 -0.645 -0.624 -0.747 -1.04 -1.395 -1.909 -2.363 -7.305 -12.945
7.1 -5.21 -3.489 -2.157 -1.545 -1.111 -0.839 -0.698 -0.712 -0.774 -0.983 -1.126 -5.036 -9.598
7.2 -6.827 -4.953 -3.473 -2.649 -1.996 -1.496 -1.117 -0.883 -0.685 -0.629 -0.514 -3.584 -7.266
7.3 -8.598 -6.579 -4.954 -3.934 -3.077 -2.368 -1.772 -1.313 -0.883 -0.593 -0.267 -2.65 -5.608
7.4 -10.348 -8.186 -6.418 -5.213 -4.168 -3.263 -2.468 -1.803 -1.165 -0.667 -0.164 -1.982 -4.342
7.5 -12.02 -9.721 -7.814 -6.435 -5.212 -4.125 -3.144 -2.29 -1.461 -0.776 -0.12 -1.47 -3.331
7.6 -13.623 -11.19 -9.148 -7.604 -6.212 -4.954 -3.799 -2.768 -1.764 -0.908 -0.114 -1.07 -2.512
7.7 -12.616 -10.44 -8.739 -7.187 -5.766 -4.446 -3.25 -2.083 -1.067 -0.143 -0.764 -1.849
7.8 -14.024 -11.717 -9.862 -8.156 -6.582 -5.106 -3.753 -2.433 -1.266 -0.215 -0.545 -1.323
7.9 -13.011 -11.007 -9.15 -7.421 -5.792 -4.289 -2.824 -1.513 -0.337 -0.411 -0.923
8.0 -14.324 -12.179 -10.178 -8.304 -6.528 -4.877 -3.266 -1.813 -0.509 -0.355 -0.633
8.1 -13.349 -11.211 -9.198 -7.283 -5.493 -3.745 -2.154 -0.723 -0.362 -0.432
8.2 -14.511 -12.241 -10.095 -8.046 -6.122 -4.243 -2.52 -0.965 -0.415 -0.298
8.3 -13.263 -10.987 -8.809 -6.756 -4.751 -2.899 -1.22 -0.496 -0.208
8.4 -14.273 -11.871 -9.567 -7.387 -5.258 -3.28 -1.48 -0.593 -0.148
8.5 -12.742 -10.314 -8.011 -5.761 -3.659 -1.738 -0.698 -0.107
8.6 -13.6 -11.05 -8.626 -6.257 -4.033 -1.991 -0.807 -0.079
8.7 -14.458 -11.788 -9.246 -6.758 -4.414 -2.252 -0.922 -0.058
8.8 -12.506 -9.846 -7.242 -4.779 -2.498 -1.035 -0.044
8.9 -13.208 -10.431 -7.713 -5.132 -2.735 -1.144 -0.033
9.0 -13.898 -11.006 -8.175 -5.478 -2.964 -1.251 -0.026
